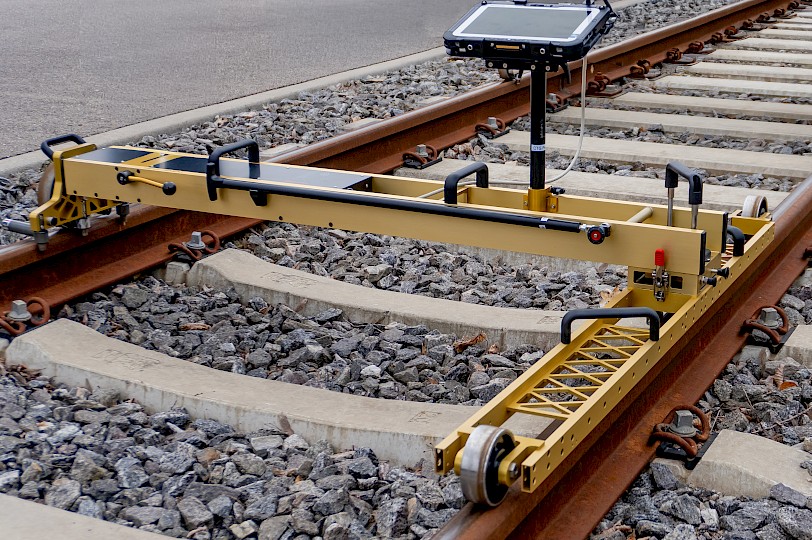

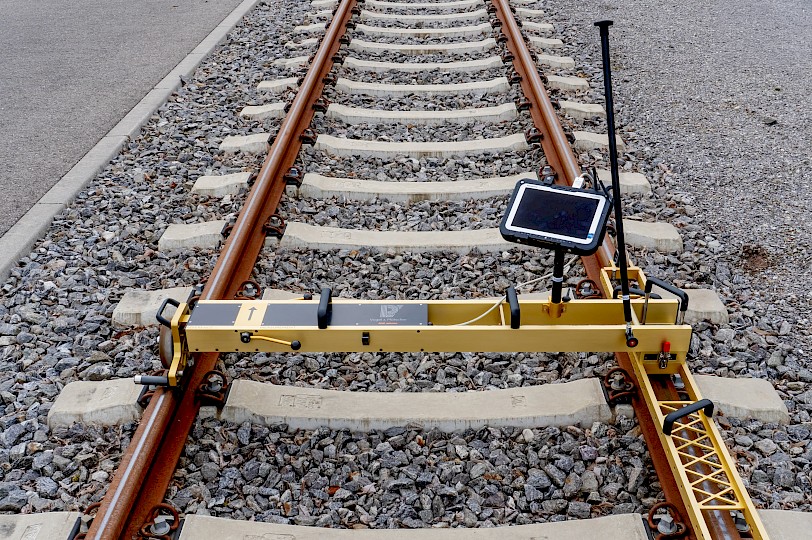

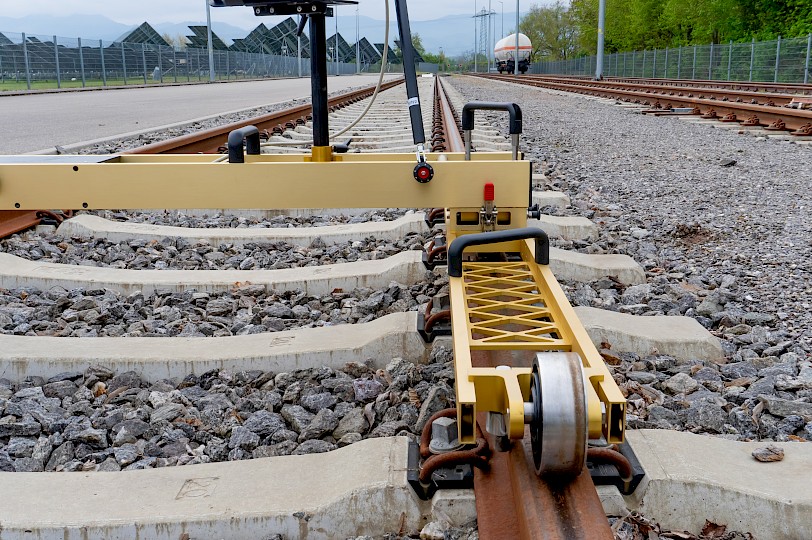

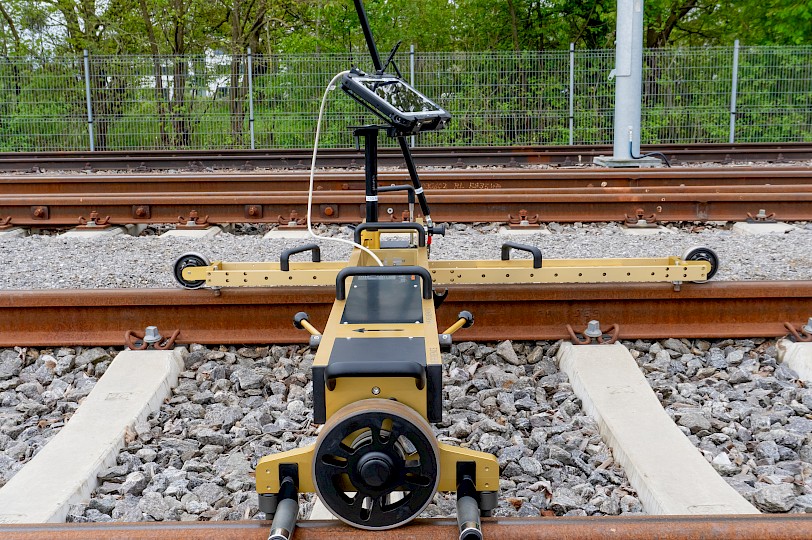

Our efficient solution for recording the most important track geometry parameters: MessReg CTG. The advanced measurement trolley is designed for use on Vignole and grooved rails. In addition to measuring track gauge and cant, the system calculates the geometric deviations of the track in both horizontal and vertical alignment relative to the physical measuring chord.

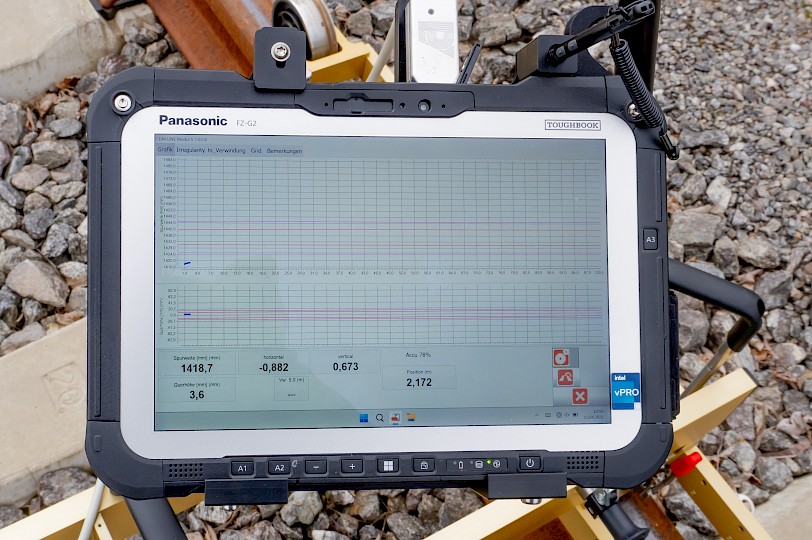

Measurement data is recorded automatically and continuously, with graphical and numerical results displayed to the user in real time. Associated limit values can be defined individually. The software automatically detects tolerance
exceeding and highlights them in color. In addition, the user can record events or track defects accurately and positionspecifically at the press of a button. The measurement results are available either as a PDF report or as an Excel data export.
| Measuring range | (for gauge 1435 mm) |
| Track gauge Sampling rate Cant Twist Vertical irregularity Horizontal irregularity Distance Chord (physical) Measurement resolution |
1415 - 1490 mm 5 mm and 100 mm ± 225 mm ± 225 mm ± 2 mm ± 5 mm continuously 1.300 mm 0,1 mm |
| Dimensions and weight | |
| Length x Width x Height Weight |
~ 1.675 x 1.550 x 780 mm ~ 26,0 kg |
| Special features | |
| The device is insulated. | |
| > Note | |
| MessReg CTG is available for other gauges, too. |
